1.Description

Our newly designed GH990 paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by robot hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved steadily after comprehensive technical improvements.

2.Leading Technology

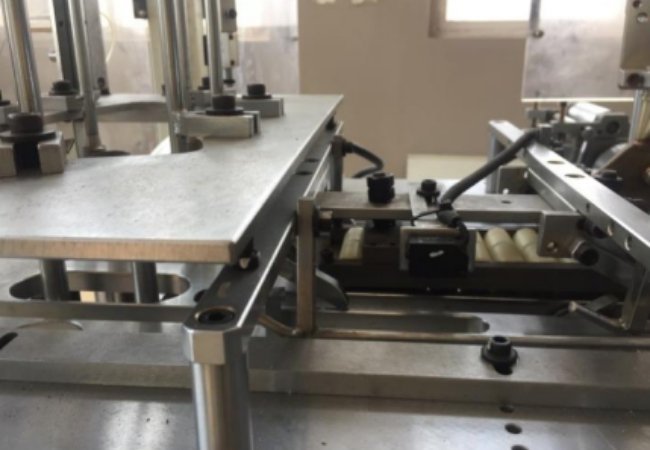

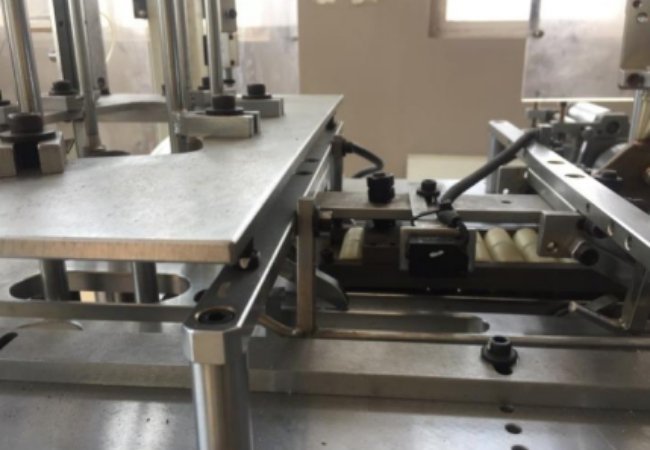

2.1 Adopts rotation type paper feeding type instead ofprevious pendulum type paper feeding type:

Advantage:

(1) Prevent dust and wastepaper from entering the lubrication system;

(2) The rotation is more stable while the pendulum is too long and easy to shake.

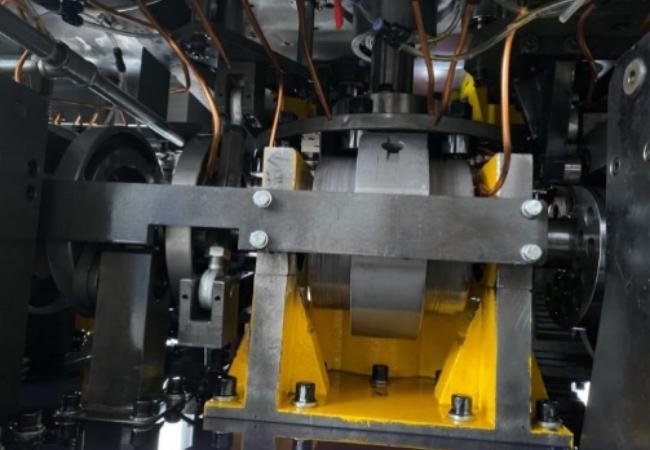

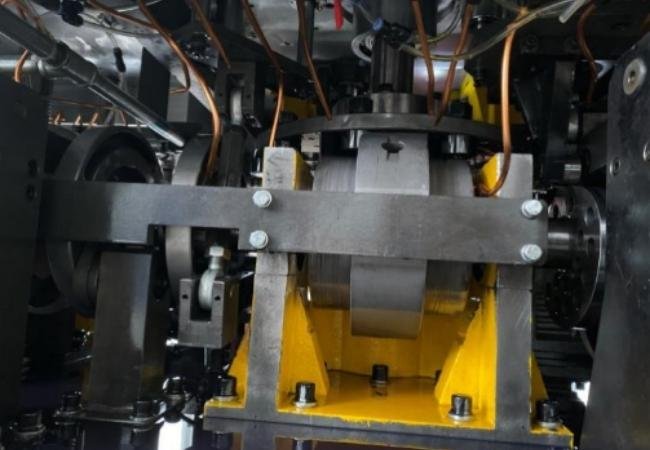

2.2 Box type open cam drive system with double longitudinal axis, all cams adopt 20CrMnTi numerical control (Nc) machining to do precision grinding

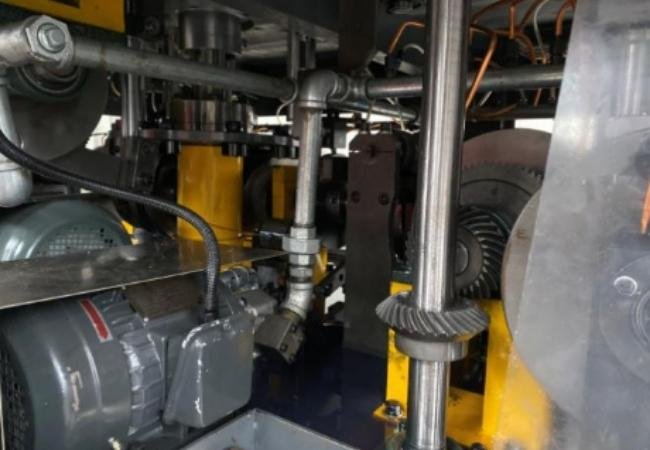

2.3 Continuous Automatic Spray Lubrication

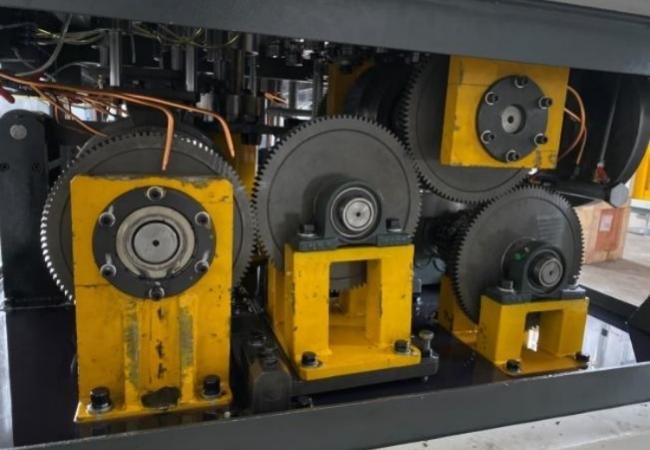

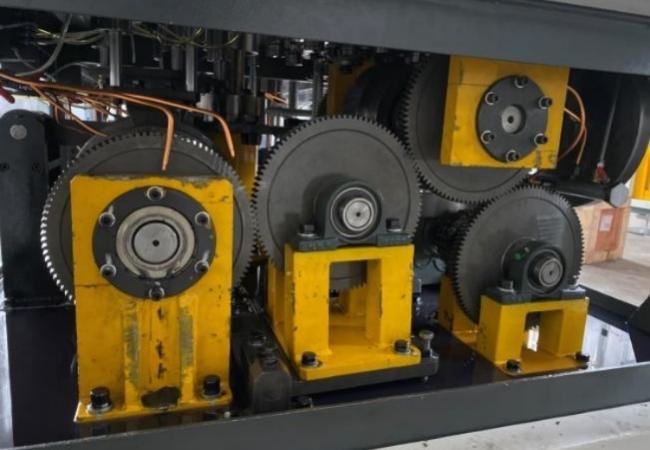

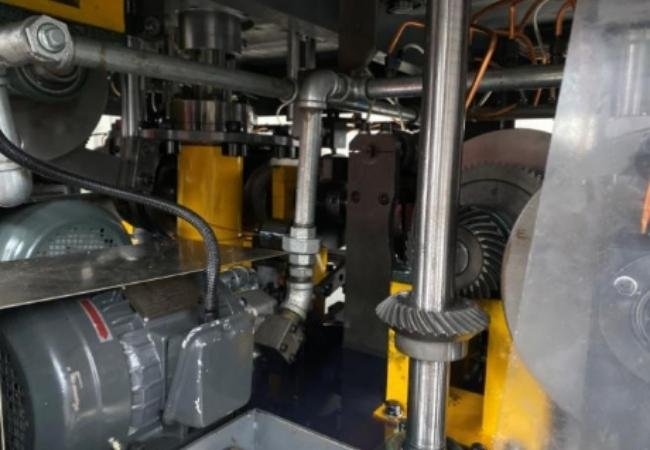

2.4 Full-gear drive

2.5 Integrated rack design

3.More details

1. Output is improved: The productivity is improved from 100~120 pcs/min to 130-150 pcs/min.

2.











Whole machine has sensor for each step, to detect the working condition, reduce fault

The machine is equipped with gear motor simplifies the complicated system and makes the machine more stable.

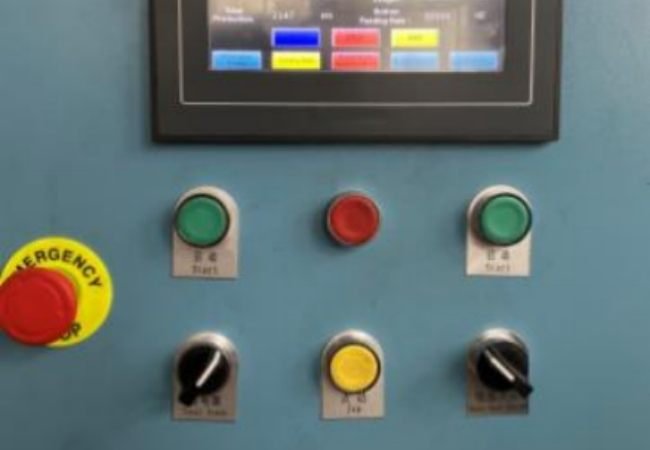

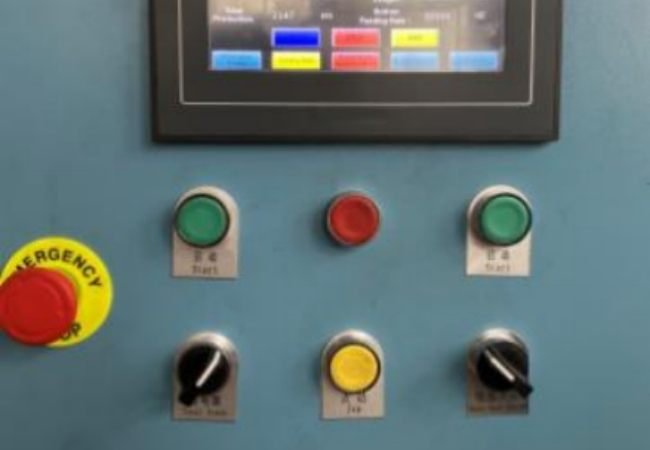

PLC Touch Screen. Much easier for engineer to operate the machine.

4. Some Improvements

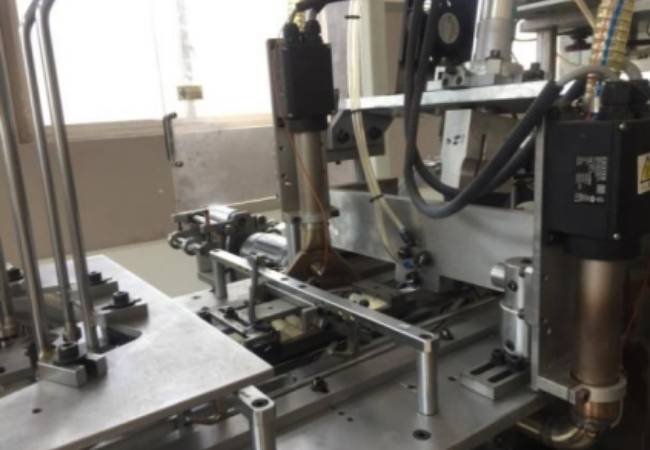

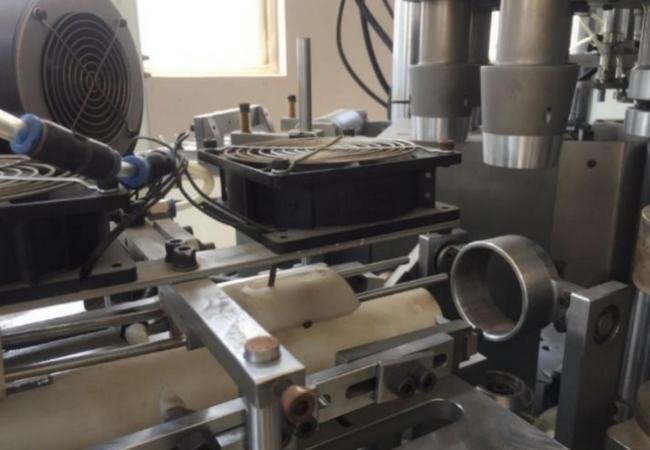

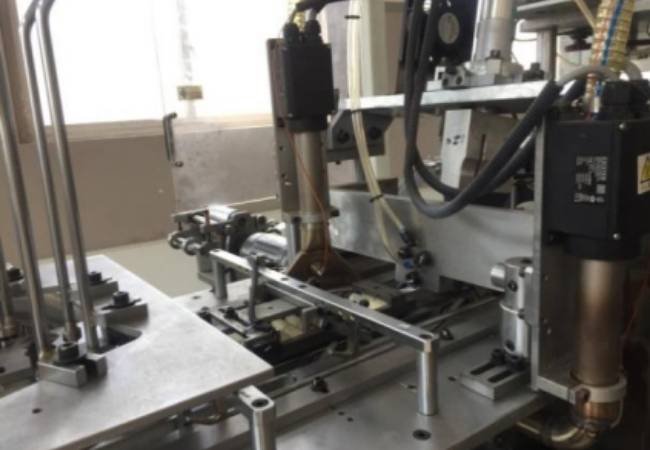

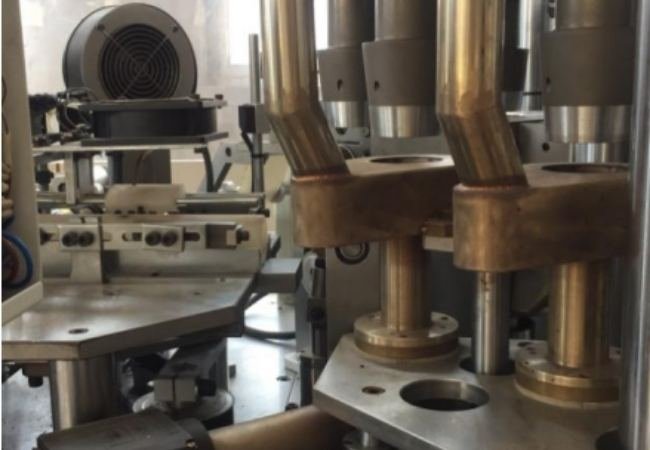

1. Two for cup fan sealing(Improvement on G12, better sealing effect)

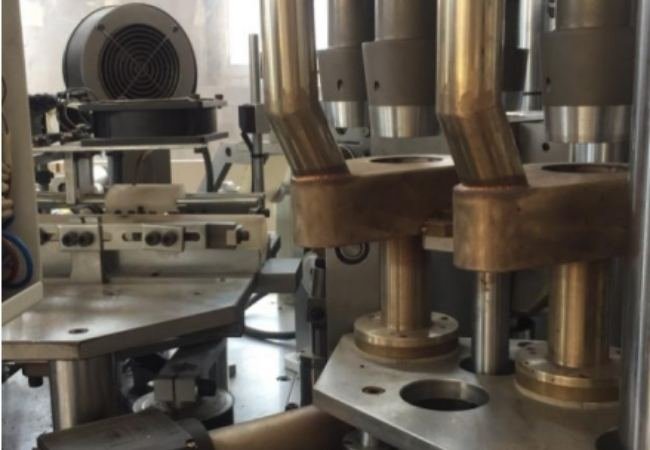

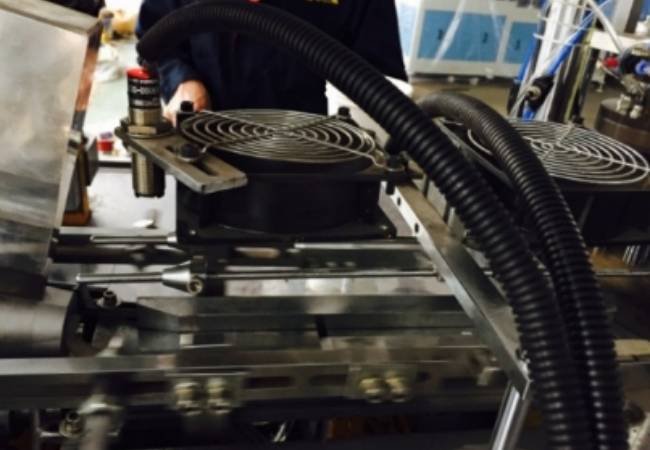

2. Two hot air devices for bottom sealing. (Improvement on G12, better sealing effect

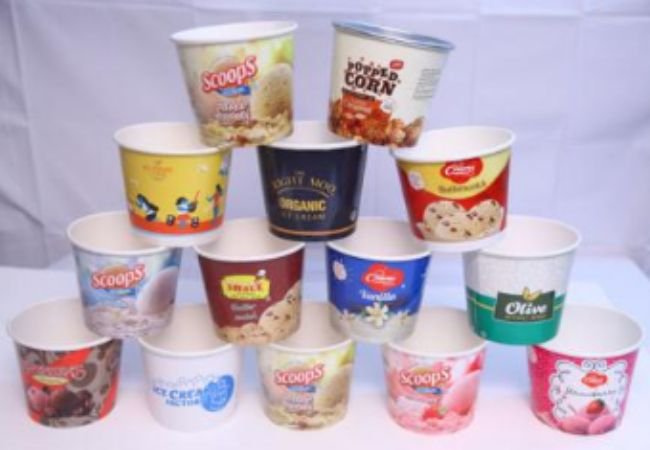

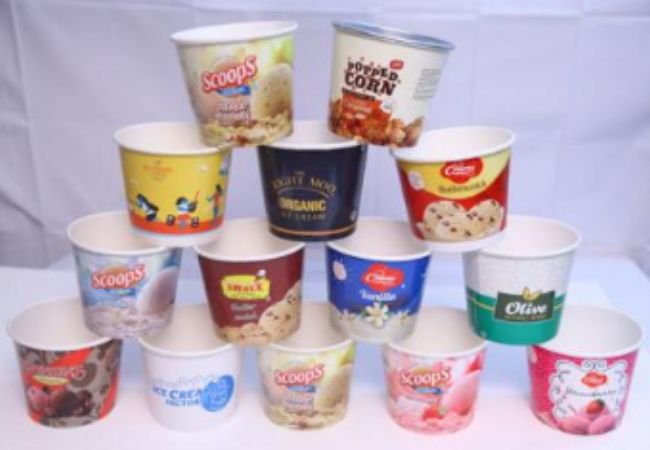

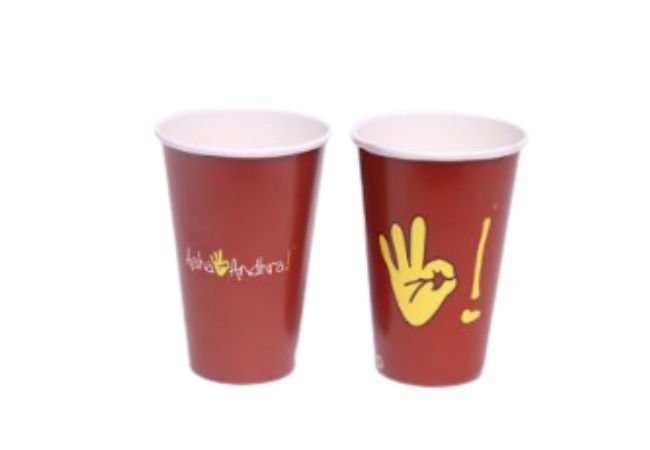

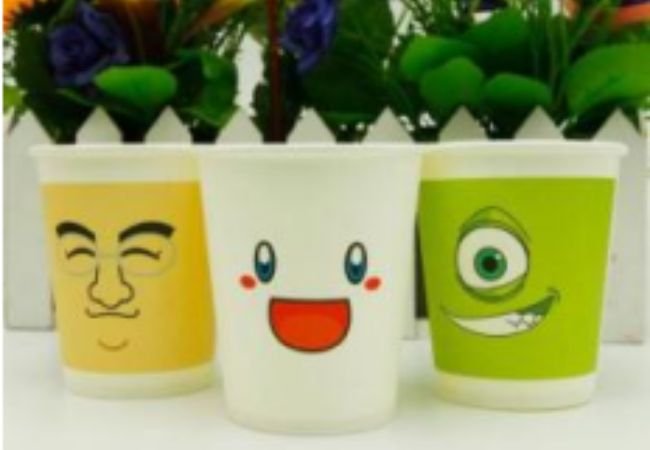

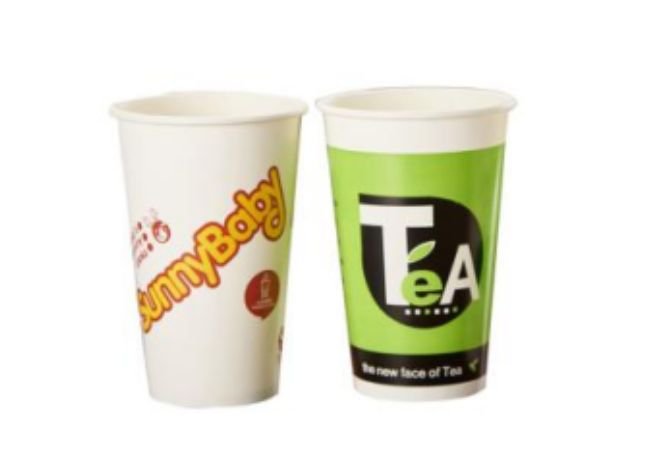

Sample:

5. Certificate of our machine

.After Sales Service

• We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
• Spare Parts: Each machine has its standard spare parts (see list).
• Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
• The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
• The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
• Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD120 per day.
